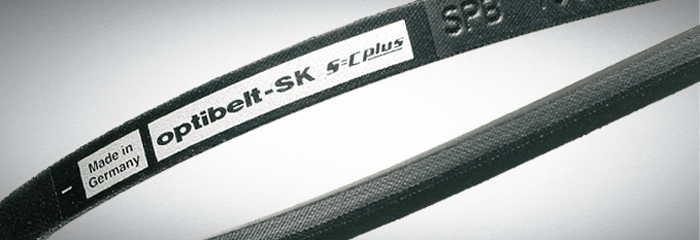

High performance wedge belts DIN/ISO/BS

The wrapped optibelt SK wedge belt was developed with mechanical engineering in mind.

It transmits substantially more power than classic V-belts with a comparable belt width, such as sections SPB and B/17.

The wrapped wedge belt has the outstanding attributes of the optibelt SK S = C Plus with an efficiency of almost 97% and is suitable for use in sets without additional measurement.

Sections and lengths
SPA 732 - 4500 mm
SPB 1250 - 8000 mm
SPC 2000 - 12500 mm
3V/9N 25 - 140 in / 635 - 3556 mm
5V/15N 53 - 355 in / 1270 - 9017 mm
8V/25N 100 - 500 in / 2540 - 1270 mm
further dimensions on request

Advantages that speak for Optibelt

  • Wrapped wedge belts according to DIN/ISO/BS

  • Low maintenance costs

  • Superior price-performance ratio

  • Considerable energy-saving

  • Excellent running properties

  • For use in sets without further measurement

  • S=C Plus Constant

  • High efficiency

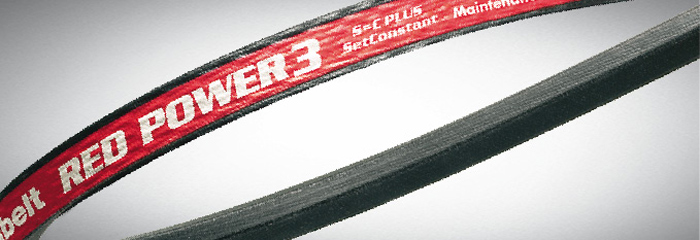

High performance wedge belts

The next generation of RED POWER 3 S=C Plus V-belts and kraftbands produces results that are really worth talking about: up to 50% higher performance while at the same time cutting costs by up to 35%.

These excellent results are due to optimised production processes and continuous improvements to raw materials.

Sections and lengths
SPZ 1202 - 3550 mm
SPA 1207 - 4000 mm
SPB 1250 - 8000 mm
SPC 2000 - 10000 mm
3V/9N 47,5 - 140 in / 1206 - 3556 mm
5V/15N 53 - 315 in / 1346 - 8001 mm
8V/25N 100 - 475 in / 2540 - 12065 mm
further dimensions on request

Advantages that speak for Optibelt

  • S=C Plus, always the right length for use in sets without measuring

  • Maintenance free

  • Up to 50% higher performance than optibelt SK, making it possible to use smaller drives

  • Suitable for back bend idlers

  • Electrically conductive

  • Temprature range -30 °C to +100 °C

Classic V-belts DIN 2215

Due to its versatile applications, the optibelt RED POWER 3 Classic is the classic model among drive belts.

Its qualities really come to the fore in difficult drives for agricultural machinery, just as in unusual drive solutions, such as V-flat drives in mechanical engineering.

Optibelt RED POWER 3 Classic belts are always the nominal size without the need to re-measure them! The optibelt RED POWER 3 Classic is a classic V-belt and is often used in general mechanical engineering as well as in special drives.

Advantages that speak for Optibelt

  • S=C Plus, always the right length for use in sets without measuring

  • Maintenance free

  • Up to 30% more power capacity than optibelt VB, which can reduce drive sizes

  • Suitable for back bend idlers

  • Electrically conductive

  • Temprature range -30 °C to +100 °C

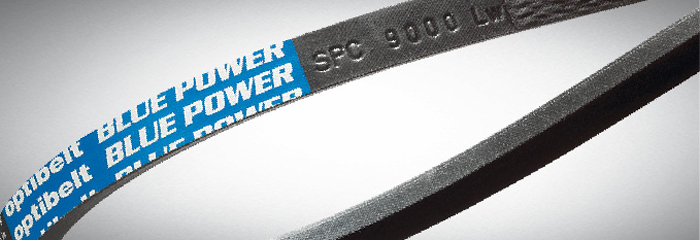

High performance wedge belts with aramid cord

The new optibelt BLUE POWER high performance wrapped wedge belt has a high-strength aramid cord, and is suitable as an individual belt, in a set or as a kraftband and is particularly suited for large, heavily loaded drives.

The optibelt BLUE POWER wedge belt has about twice the capacity of a wedge belt in the standard technical design. This translates to up to 100% extra performance.

Sections and lengths
SPB 1500 - 8000 mm
SPC 2000 - 9000 mm
8V/25N 160 - 355 in / 4064 - 9017 mm
further dimensions on request

Advantages that speak for Optibelt

  • Aramidcord - extremely low stretch

  • 2 times more power capacity than a standard wedge V-Belt

  • For heavy loaded drives

  • Electrically conductive

  • Suitable for back bend idlers

  • Temperature range -30°C to +100°C

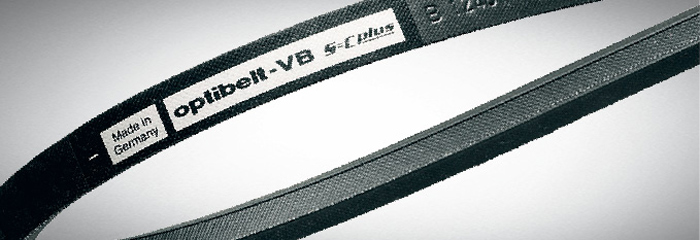

Classic V-belts DIN 2215

Due to its versatile applications, the optibelt VB is the classic model among drive belts. Its qualities really come to the fore in difficult drives for agricultural machinery, just as in unusual drive solutions, such as V-flat drives in mechanical engineering.

Optibelt VB classic belts are always the nominal size without the need to re-measure them! optibelt VB is a classic V-belt and is often used in general mechanical engineering as well as in special drives.

Sections and lengths
5 200 - 610 mm
Y/6 295 - 868 mm
8 335 - 1270 mm
Z/10 312 - 2522 mm
A/13 437 - 5030 mm
B/17 610 - 7140 mm
20 950 - 6050 mm
C/22 1148 - 8058 mm
25 1460 - 9060 mm
D/32 2075 - 11275 mm
E/40/ 3080 - 12580 mm
  further dimensions on request

Advantages that speak for Optibelt

  • Excellent operating reliability

  • Numerous special designs

  • Electrically conductive

  • Optimum operating features

  • For universal use

  • Uniform power transmission

  • More flexible than wedge belts

  • Friction-resistant cover fabric

  • Temperature range -30°C to +90°C

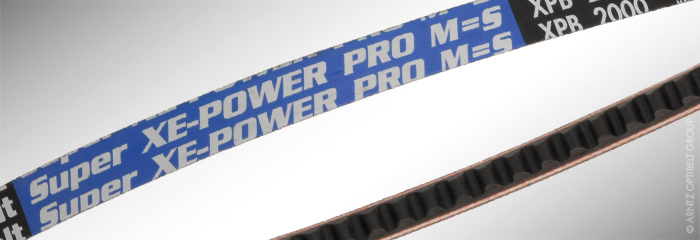

High performance wedge belts – raw edge, moulded cogged

The new maintenance-free optibelt SUPER XE-POWER PRO M=S is one of the best performing drive belts on the market. The innovative design of the optibelt SUPER XE-POWER PRO M=S opens up new scope in designing frictional power transmission drives, even on the smallest pulley diameters, in extreme temperature ranges and at the highest speeds.

Sections and lengths
XPZ 587 - 3556 mm
XPA 707 - 3556 mm
XPB 1250 - 3556 mm
XPC 2000 - 3556 mm
3VX/9NX 25 - 140 in
5VX/15NX 50 - 140 in
further dimensions on request

Advantages that speak for Optibelt

  • Fit for back idlers

  • Very quiet running even at very high torque levels

  • M=S Set Constant - can be used in sets without further measurement

  • Maintenance free

  • + 20% power compared to optibelt SUPER X-POWER M=S

  • Temperature range -40°C to +120°C

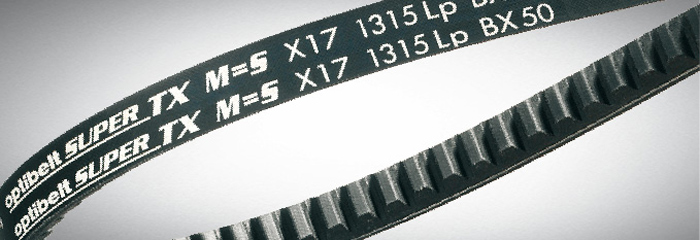

V-belts - raw edge, moulded cogged, DIN/ISO

The extraordinary flexibility of raw edge, moulded cogged optibelt SUPER TX V-belts enables extremely small pulley diameters to be used.

High quality rubber compounds in connection with low stretch tension cords guarantee a high power transmission capacity and an extended operational life.

optibelt SUPER TX M=S V-belts are always the right length for use in sets without measuring and guarantee a wide performance range and high efficiency.

Sections and lengths
X10/ZX 597 - 1522 mm
X13/AX 590 - 3380 mm
X17/BX 610 - 3390 mm
X22/CX 1058 - 3408 mm
further dimensions on request

Advantages that speak for Optibelt

  • Low stretch

  • High power transmission

  • M=S Set Constant - can be used in sets without further measurement

  • Extreme transverse rigidity

  • Improved abrasion resistance

  • Temperature range -30°C to +90°C

  • Sophisticated material technology

  • Outstanding efficiency

  • Electrically conductive

  • Extremely small pulley diameters

  • Allows drive ratios up to 1:12

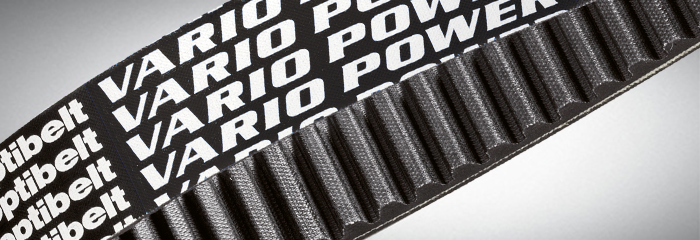

Variable speed belts

The base compound consists of a polychloroprene rubber compound with reinforcing fibres inlaid transversely to the running direction. The high quality and extremely low stretch polyester or aramid tension cord is embedded in a cushion compound. It is reinforced with a fabric outer surface, and the transverse fibres incorporated provide transverse rigidity without sacrificing flexibility.

optibelt VARIO POWER variable speed belts are the preferred choice for infinitely variable speed control. The special belt structure allows for high dynamic loads, superior power transmission capability and good control characteristics.

Also available as a double sided belt.

Dimensions
Width from 10 to ~ 85 mm
Height from 5 to ~ 30 mm
Inside length from 550 to ~ 3500 mm
Angels from 22° to 42°
can be manufactured on request - further dimensions on request
V-GROOVED PULLEYS for cylindrical bore or for optibelt TB taper bushings, variator pulleys on request

Advantages that speak for Optibelt

  • High power transmission

  • Electrically conductive

  • High transverse strength

  • Long life

  • Low stretch polyester or aramid cord

  • Quiet running

  • Allows drive ratios up to 1:12

  • High flexibility

  • Temperature range -30°C to +90°Ce

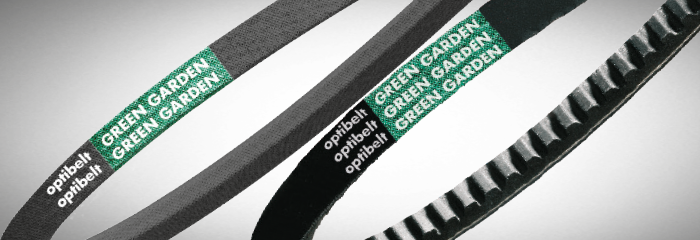

Variable speed belts - raw edge, moulded cogged

The optibelt GREEN GARDEN V-belt is often used in the lawn and garden industry. Here we offer universal dimensions, which are optimally adapted to the requirements of garden technology.

Sections and Length - Universal dimensions
3L 160 – 520, 16 – 52 in
4L 180 – 1170, 18 – 117 in
5L 350 – 820, 35 – 82 in
Further dimensions on request
V-GROOVED PULLEYS All standard pulleys, special pulleys on request

Advantages that speak for Optibelt

  • High power transmission

  • Environmentally friendly

  • Extensive range

  • Long life

  • Quiet running

  • High flexibility

Classic V-belts DIN 2215

optibelt AGRO POWER Variable speed belts are the preferred choice for infinitely variable speed control.

The special belt structure allows for high dynamic loads, superior power transmission capability and good control characteristics.

This product features high-quality fibre-reinforced rubber compounds combined with low-stretch tension cords and a cover fabric

Sections and lengths
In order to make a comparison, all common part numbers can be found in our current reference catalogue, AGRO POWER.
V-GROOVED PULLEYS all standard pulleys, special pulleys on request

Advantages that speak for Optibelt

  • High power transmission

  • Environmentally friendly

  • Extensive range

  • Long life

  • Quiet running

  • High flexibility

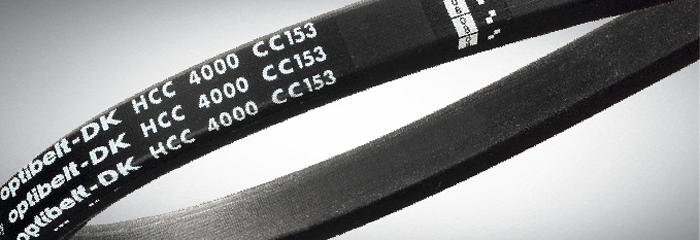

Double sided V-belts DIN 7722

These belts are used if several pulleys are located on one level and the direction of rotation of one or more driven pulleys is to be changed. The optibelt DK double sided V-belt is ideally suited for use in typical serpentine designs.

No special grooved pulleys are required for using optibelt DK double sided V-belts. Standard grooved pulleys with the appropriate profiles can be used. These belts are mainly used in agricultural machines and increasingly also in general engineering.

Sections and lengths
AA/HAA 2000 - 4200 mm
BB/HBB 1980 - 6900 mm
CC/HCC 3200 - 5750 mm
22x22 5180 - 5850 mm
DD/HDD on request
25x22 on request
further dimensions on request

Advantages that speak for Optibelt

  • Polyester or aramid cord

  • High transverse strength

  • Temperature range -35°C to +85°C

  • Ideally suited for serpentine designs

  • Outstanding flexibility

  • Electrically conductive

  • Excellent running properties

Classic V-belts DIN 2215

This optibelt GREEN GARDEN V-belt is often used in garden technology. We offer universal dimensions here which are ideally suited to the requirements of garden technology.

Sections and lengths
All common part numbers can be found for cross-reference purposes in our current GREEN GARDEN reference catalogue
V-GROOVED PULLEYS All standard pulleys, special pulleys on request
